Transparency Tester

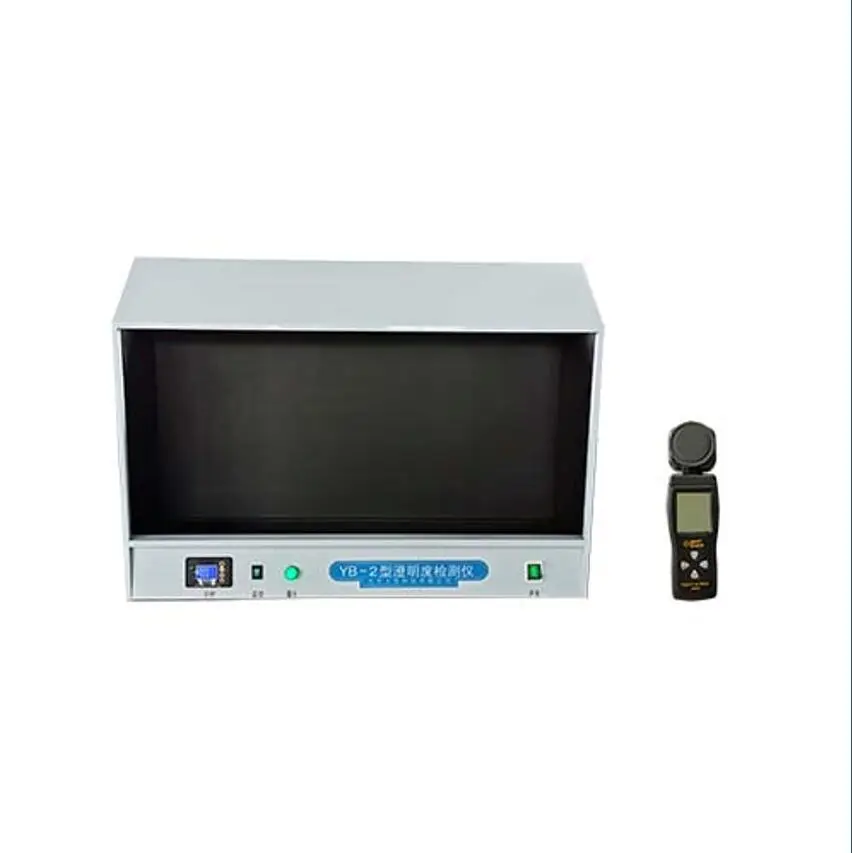

[MGT] Precision Transparency Tester
Advanced optical measurement for material clarity and light transmission.
The [MGT] Transparency Tester is a state-of-the-art instrument engineered for the precise quantification of light transmittance in transparent and semi-transparent materials. Utilizing a calibrated light source and high-sensitivity photodetector, this device provides accurate, repeatable measurements essential for quality assurance, research, and compliance verification across diverse industries.
Key Applications:
- Quality control of packaging films (e.g., PET, PVC, OPP)
- Optical grading of architectural & automotive glass
- Testing transparency of polymer sheets, lenses, and displays
- Verification of material consistency in production batches
- Compliance testing for optical specifications (e.g., UV blocking, haze levels)
Core Features & Benefits:
- High Accuracy & Repeatability: Measures transmittance (%) with industry-leading precision.
- Broad Compliance: Conforms to major international standards (ISO 13468, ASTM D1003, JIS K 7105, etc.).
- User-Centric Design: Intuitive digital interface, easy sample placement, and rapid measurement cycles.
- Robust Construction: Durable for demanding lab and factory-floor environments.
- Data Integrity: Features data logging, export capabilities, and customizable reporting.
- Calibration Ready: Supports traceable calibration for audit compliance.
| Parameter | M-Ⅱ Model | M-Ⅲ Model |
|---|---|---|
| Model | M-Ⅱ | M-Ⅲ |
| Input Power | AC 220V ±10%, 50Hz | AC 220V ±10%, 50Hz |
| Illumination | Single-sided | Double-sided |
| Illuminance Range | 1000-6000 LX | 1000-6000 LX |
| Lamp Tube | 20W (Dedicated Class A refined tri-phosphor fluorescent lamp, electronic ballast) | 22W (Dedicated Class A refined tri-phosphor fluorescent lamp, electronic ballast) |
| Timer Range | 1-99S (freely adjustable) | 1-99S (freely adjustable) |
| Power | 20W | 22W |
| Weight | ≈15 kg | ≈25 kg |
| Overall Dimensions (L×W×H) | 703×175×513 mm | 703×345×513 mm |
