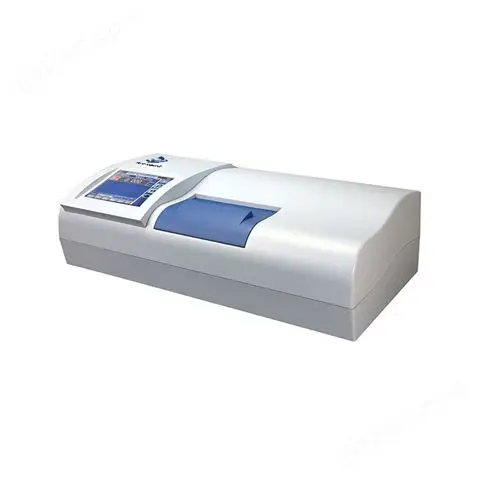

Polarimeter

The Polarimeter is a precision optical instrument designed to measure the angle of rotation of plane-polarized light passing through optically active substances. Essential for quality control in pharmaceuticals, food science, and chemical industries, our export-grade polarimeters combine ISO-compliant accuracy, robust construction, and user-centric automation to meet global laboratory standards.

Product Details

Polarimeters operate on the optical rotation phenomenon: A monochromatic light source (e.g., 589nm sodium D-line) is polarized through a Nicol prism. When this polarized light passes through a chiral compound (e.g., sugars, amino acids), its plane rotates proportionally to the substance’s concentration and molecular structure. A precision analytical rotary scale or digital detector quantifies this rotation (±0.01° resolution).

Feature	Technical Specification	Commercial Advantage
Multi-Wavelength	365nm, 405nm, 589nm, 633nm selectable	Complies with USP/EP/JP pharmacopeia
Sample Handling	5-200mm pathlength tubes, Peltier temp control (-10°C to 100°C)	Supports diverse matrices: syrups, APIs, essential oils
Automation	Auto-zeroing, calibration, data export (CSV/PDF)	30% faster analysis vs. manual systems
Compliance	CE, RoHS, ISO 8655, GLP/GMP-ready	Barrier-free entry into EU/US/APAC markets
Durability	Aircraft-grade aluminum housing, IP54 rating	Withstands harsh shipping/field conditions

Metric	Performance	Measurement Range
Optical Rotation	±90°	±260° (angular)
Accuracy	±0.002° (at 589nm)
Repeatability	±0.001° (SD)
Sample Volume	0.5mL (micro-cell) to 50mL
Data Interface	USB/Ethernet, LIMS integration via 21 CFR Part 11
