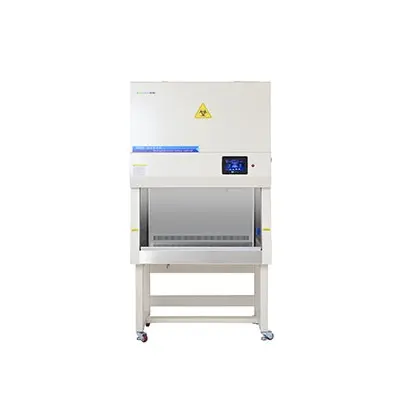

Biological Safety Cabinet
Product Series
1. Class II Type A2 BSCs
- Applications**: Biosafety Level 1-3 agents, cell culture, diagnostics
- Airflow**: 30% recirculation / 70% exhaust (≥0.38 m/s inflow velocity)
- UV Light**: 30W germicidal lamp with motion sensor auto-off
2. Class II Type B2 Total Exhaust Systems
- Applications**: Toxic chemical/radioactive material handling
- Ducted Operation**: 100% external exhaust (≥0.51 m/s inflow)
- Corrosion Resistance**: 316L stainless steel interior
3. PCR Workstation Specialized Models
- Features**: UV/HEPA dual decontamination cycle
- Cross-contamination Control**: <1 CFU/hr aerosol containment
Core Technologies
Advanced Containment System
Triple HEPA filtration (99.999% @ 0.3μm particles)
Real-time airflow monitoring with ±3% accuracy
Smart Airflow Management
DC ECM motors (50% energy saving vs AC systems)
Auto-balancing compensation for filter loading
Integrated Safety Controls
7" touchscreen with protocol logging (GLP compliant)
Alarm system for UV status/airflow deviations
Key Advantages
✅ Ultimate Personnel Protection
Negative pressure plenum design (ISO 14644-1 Class 5)
Sealed welded construction (0.02 mm/m leak rate)
✅ Energy Efficiency
40% lower airflow consumption than EU counterparts
Night mode reduces energy use by 60%
✅ Certification Compliance
NSF/ANSI 49 & EN 12469 certified
CE Marked with ISO 9001/13485 quality systems
✅ Custom Configurations
Optional downflow LED lighting (1,000 lux)
Pass-through chambers or foot pedal controls
Technical Innovations
Patented Aerodynamic Design
Anti-turbulence inlet grille reduces eddy currents by 70%
V-shaped front aperture maintains critical airflow
Decontamination Assurance
Automated formaldehyde vapor cycle (optional)
HEPA filter scan testing ports
Why Global Labs Trust Us
By collaborating with China's leading cleanroom technology institutes, we integrate:
Aerospace-grade airflow sensors for precision monitoring
Hospital-grade stainless steel surfaces (easy decontamination)
5-year HEPA filter warranty – longest in the industry
Global Clients Include:
Vaccine production facilities (WHO prequalified)
National CDC reference labs
Tier 1 university core facilities
Service Commitment
On-site installation validation (IEST certified)
24/7 remote diagnostics via IoT connectivity
⚡ 72-hour emergency service response worldwide
Classic Applications of Biological Safety Cabinets (BSCs
1、Microbiology & Virology Research
Handling infectious agents (e.g., bacteria, viruses) to protect researchers from exposure.
Example: Culturing Mycobacterium tuberculosis or working with SARS-CoV-2 samples.
2、Molecular Biology & PCR Work
Preventing cross-contamination during nucleic acid extraction or pipetting.
Critical for sensitive procedures like PCR setup to avoid aerosol contamination.
3、Clinical Diagnostics
Processing patient specimens (e.g., HIV, hepatitis) in healthcare settings.
Ensures safe manipulation of potentially hazardous biological materials.
4、Pharmaceutical Manufacturing
Aseptic preparation of sterile drugs, vaccines, or cell cultures.
Maintains contamination-free environments for quality control.
5、Toxicology & Radioactive Material Handling
Safely working with hazardous chemicals, carcinogens, or radioactive isotopes.
Example: Preparing radiolabeled compounds for biomedical research.
