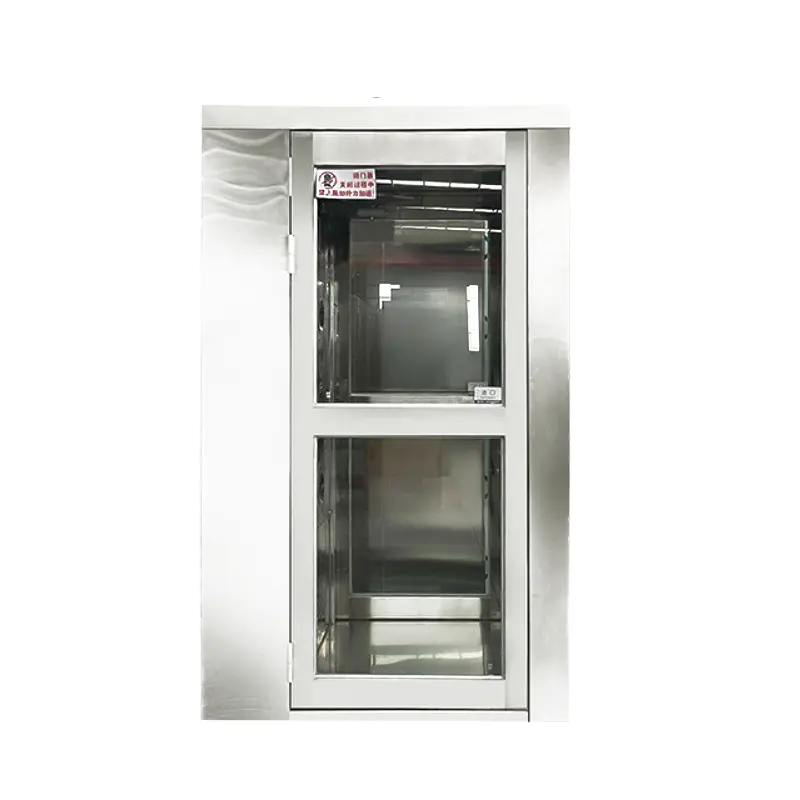

Air Shower
Air showers provide effective decontamination of personnel and materials prior to entry into controlled environments.
Utilizing ISO 14644-verified HEPA filtration and high-velocity airflow (20-25 m/s), our systems achieve >99.99% particulate removal efficiency at 0.3μm, ensuring compliance with stringent cleanroom protocols.
| Technical Specifications |
|---|
| Parameter | Specification |
|---|---|
| Air Velocity | 22-28 m/s (adjustable) |
| Filtration | H14 HEPA (EN 1822) + Pre-filters |
| Material | 304/316L stainless steel |
| Nozzle Configuration | 12-36 nozzles (size-dependent) |
| Cycle Time | 10-99 sec programmable |
| Interlock System | Automatic door sealing |
| Control Interface | Touchscreen PLC with audit trail |
| Certifications & Compliance |
|---|
| • CE Marking |
| • RoHS Directive |
| • ISO 14644-1 Class 5 |
| • Compliant with GMP, FDA 21 CFR Part 11 |
| Export Configurations |
|---|
| Voltage: 110V/220V/380V 50/60Hz |
| Dimensions: Standard (1200x1200x2180mm) to Custom |
| Language Support: Multi-language interface (EN/DE/FR/ES/RU/JP) |
| Applications |
|---|
| Semiconductor fabrication facilities |
| Sterile pharmaceutical manufacturing |
| Aerospace component assembly |
| Biomedical research centers |
| Global Export Advantages: |
|---|
| ✓ Corrosion-resistant construction for tropical climates |
| ✓ On-site validation support worldwide |
| ✓ OEM/ODM capabilities |
| ✓ IP54 rated electronics |
